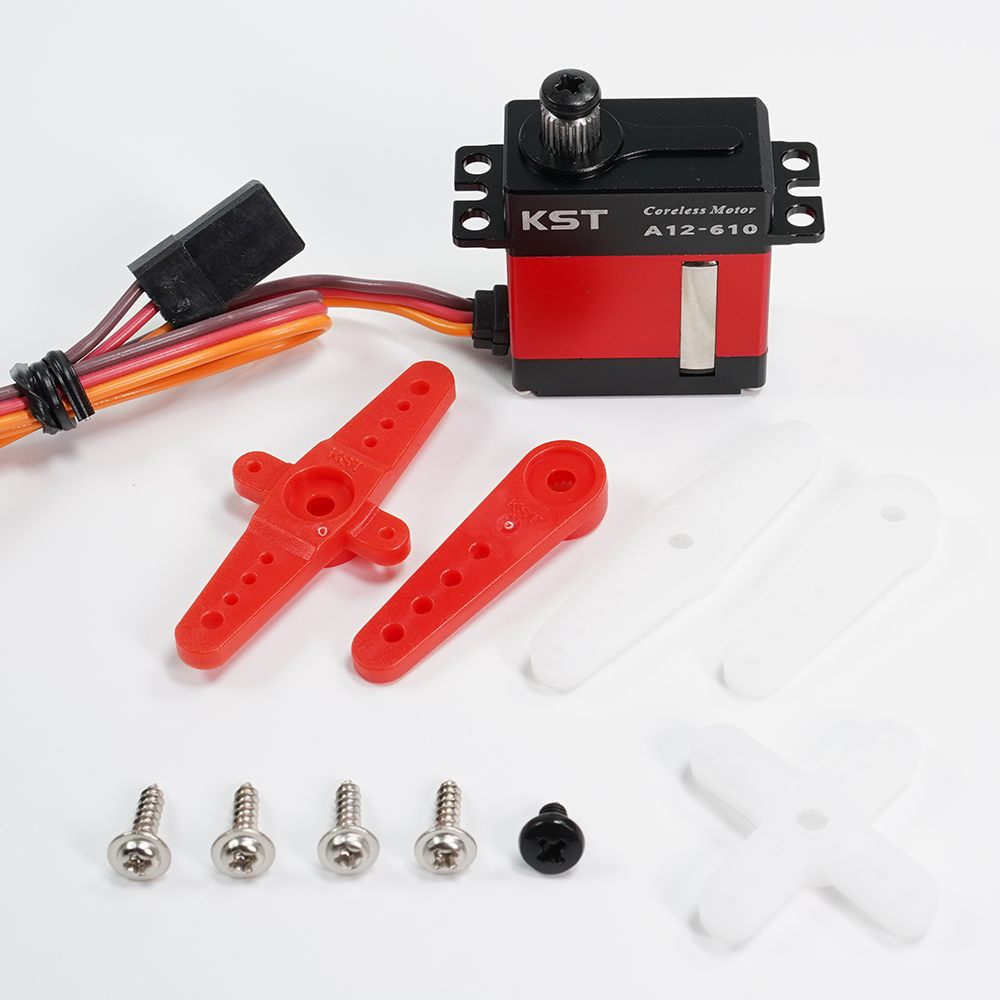

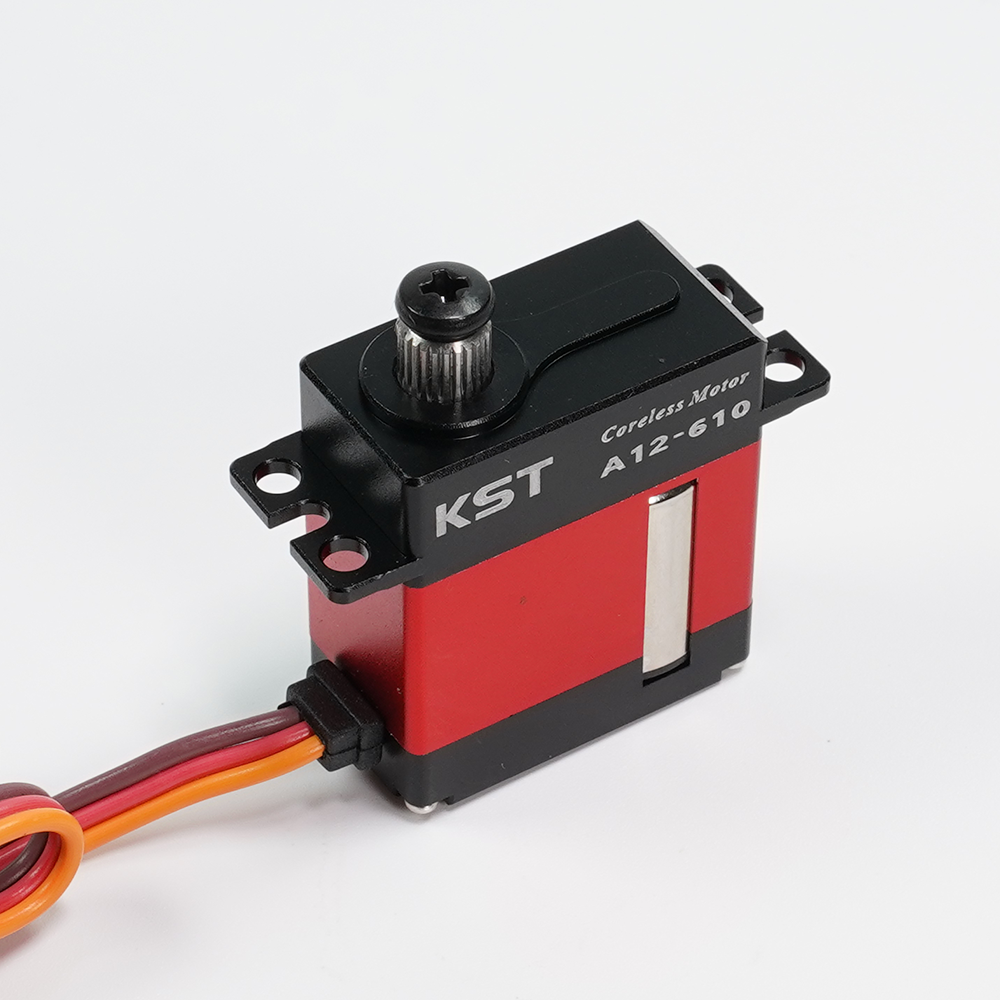

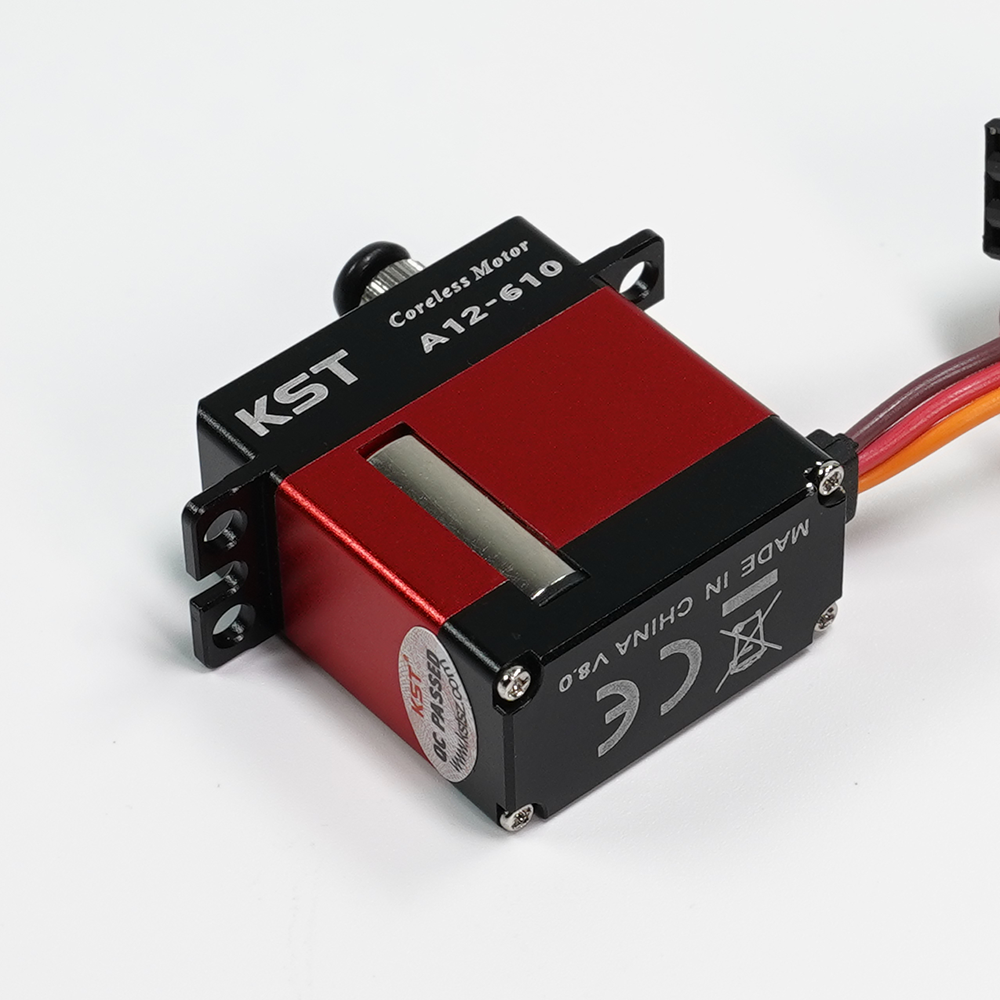

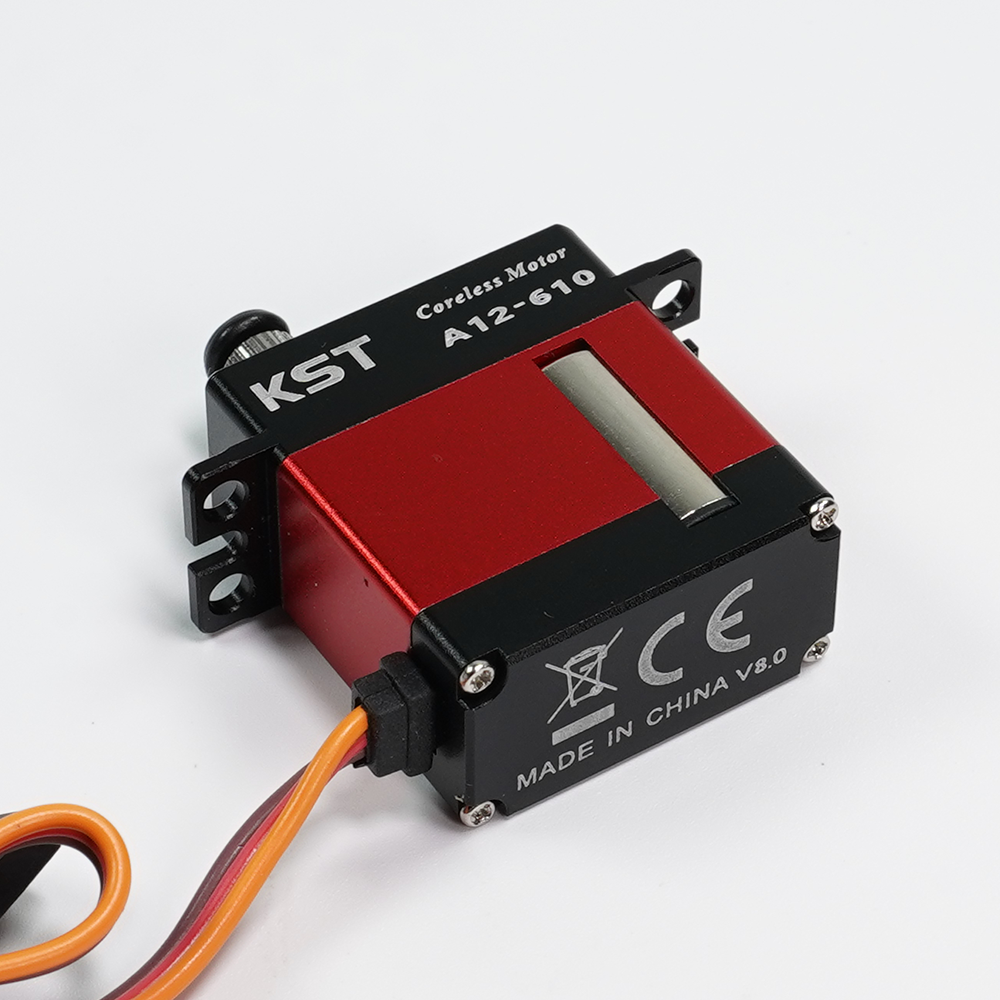

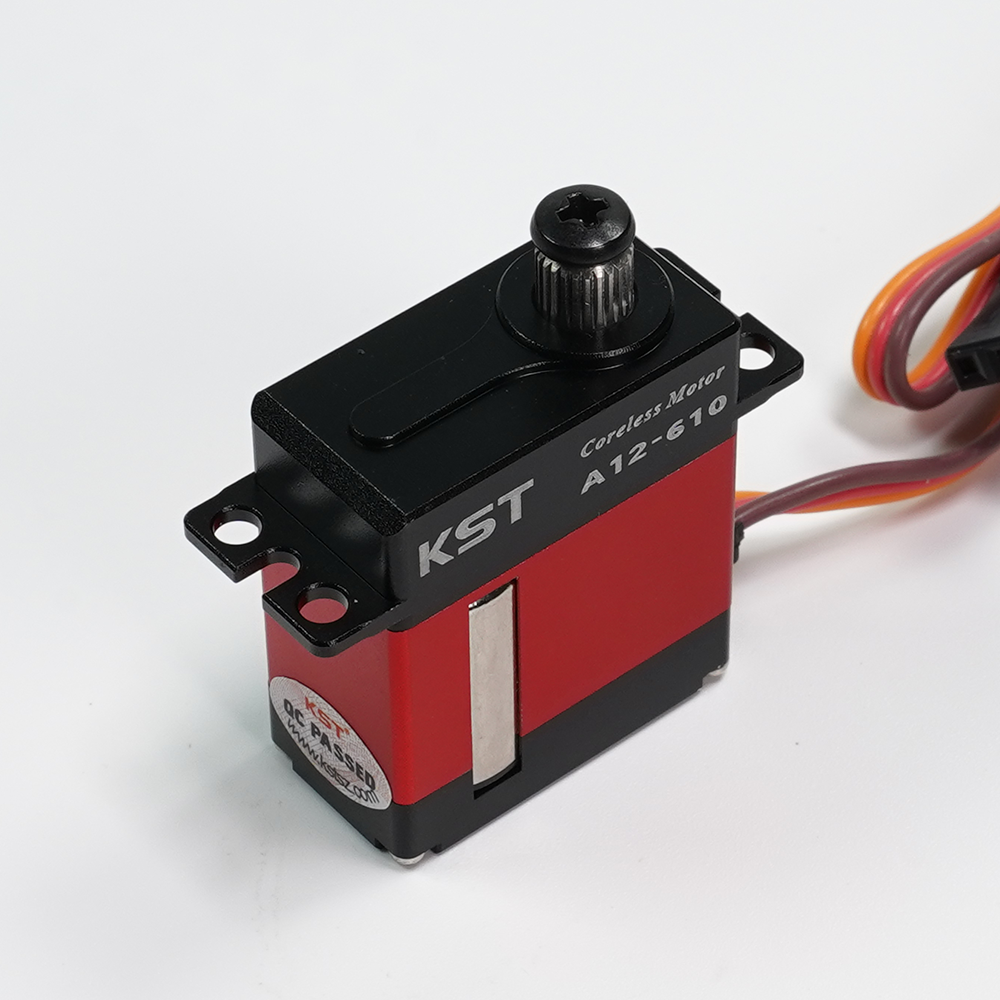

A12-610 V8.0 HV Mini Servo 9kg 0.10sec/60degree with Soft Start for Glider Wing
$34.99
Upgraded from the acclaimed X12-508, the KST A12-610 V8.0 high-voltage mini wing servo brings more torque, refined soft-start protection, and premium CNC aluminum construction to glider wings and compact fixed-wing airframes. Delivering up to 9.0 kgf.cm at 8.4V in a slender 20g package, it provides the precision holding force and smooth control authority that competitive glider pilots demand — without adding unnecessary weight.
Key Features
- Upgraded Torque Performance: Delivers 8.0 kgf.cm at rated 7.4V and up to 9.0 kgf.cm at 8.4V — a significant step up from its predecessor, the X12-508.
- Soft Start Function: Built-in soft-start protection gently ramps servo movement on power-up, safeguarding linkages and control surfaces from sudden load spikes.
- High-Voltage Operation: Wide 4.8V–8.4V range supports direct 2S LiPo compatibility without voltage regulation.
- Coreless DC Motor: Fast, linear response with minimal deadband ensures precise aileron and flap control across the full travel range.
- Hardened Steel Geartrain: Precision metal gears engineered for zero backlash, consistent centering, and resilience against aerodynamic hinge loads.
- Full CNC Aluminum Casing: Precision-machined housing provides accurate servo bay fitment, structural rigidity, and effective heat dissipation.
Technical Specifications
- Model: A12-610 V8.0 Mini Glider Wing Servo
- Rated Voltage: DC 7.4V
- Voltage Range: DC 4.8V – 8.4V
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Case Material: CNC Aluminum Alloy
- Position Sensor: Potentiometer
- Working Frequency: 1520μs / 333Hz
- Default Travel Angle: ±50° (100° Total)
- Operating Temperature: -10°C to +65°C
- Soft Start: Yes
- Dimensions: 23.0 × 12.0 × 27.0 mm (±0.2mm)
- Weight: 20g (±10%)
Performance Ratings
-
Stall Torque:
- 5.5 kgf.cm @ 4.8V
- 6.5 kgf.cm @ 6.0V
- 8.0 kgf.cm @ 7.4V
- 9.0 kgf.cm @ 8.4V
-
Operating Speed (No-Load):
- 0.13 sec/60° @ 4.8V
- 0.12 sec/60° @ 6.0V
- 0.11 sec/60° @ 7.4V
- 0.10 sec/60° @ 8.4V
Dimensions & Sizing
Documentation
